SPACE CAMERAS

iSIM (integrated Standard Imager for Micro-satellites) is a new generation of High and Very High-Resolution optical imagers for Earth Observation satellites with video capability, developed by SATLANTIS. The iSIM instrument operates simultaneously in the visible, near infrared and short-wave infrared spectral ranges, supporting innovative applications.

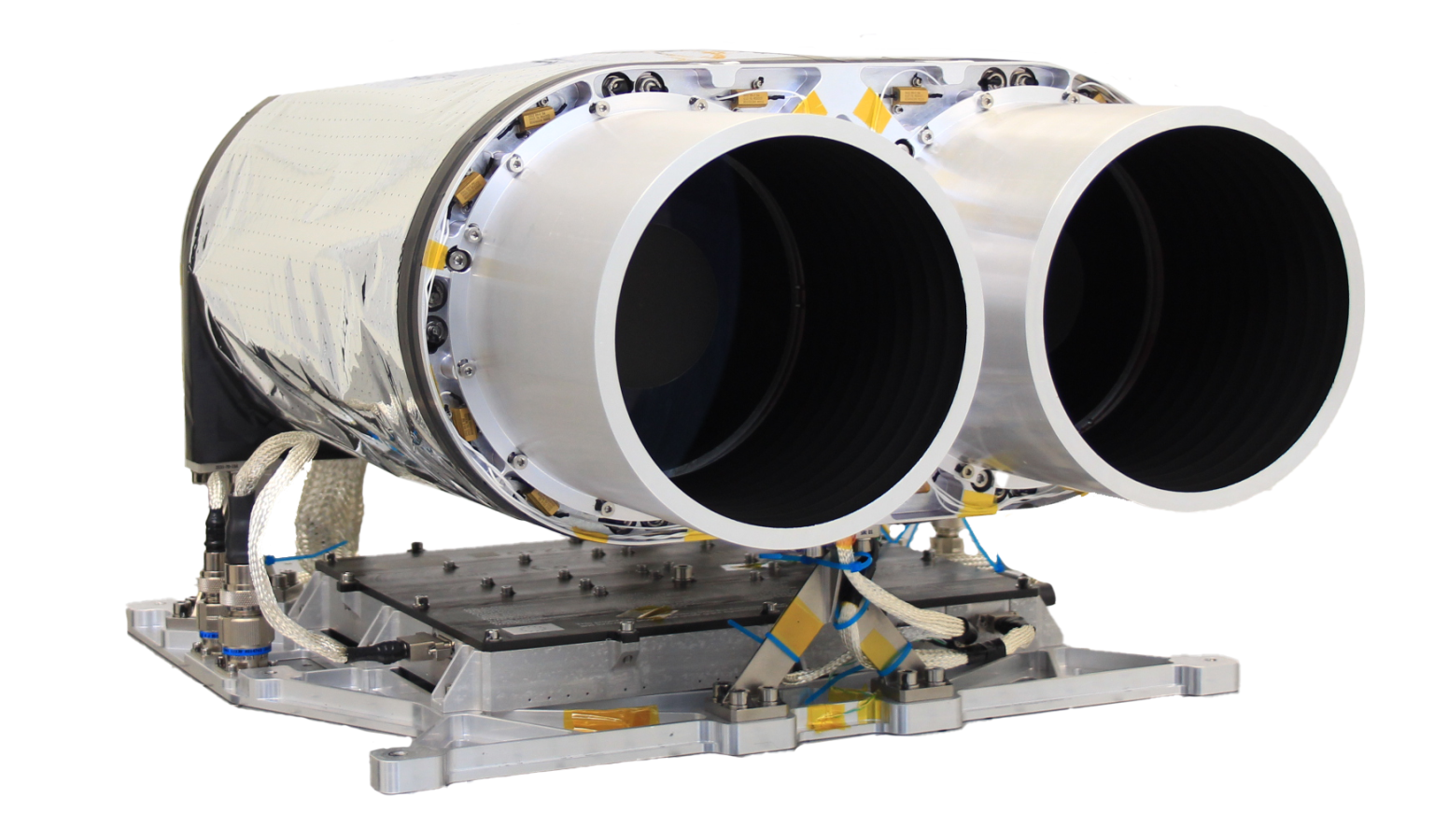

iSIM-170

The iSIM-170 instrument is able to provide imagery in the VNIR and/or SWIR spectral ranges, designed to fit Micro-satellites platforms, with an unprecedented mass-to-resolution ratio.
Based on SATLANTIS’ proprietary and flight-proven technology iSIM.

iSIM 170 – Main Features

MASS: <15 kg targeted for Micro-satellites
SWATH (at 500 km)
PAN & VNIR: 7,5 – 13,5 km
SWIR: 4,2 km
IMAGING GSD (at 500 km)
PAN & VNIR: <1 m
SWIR: 2,5 m
MULTISPECTRAL BANDS
HERITAGE: validated in Space in Q2 2020

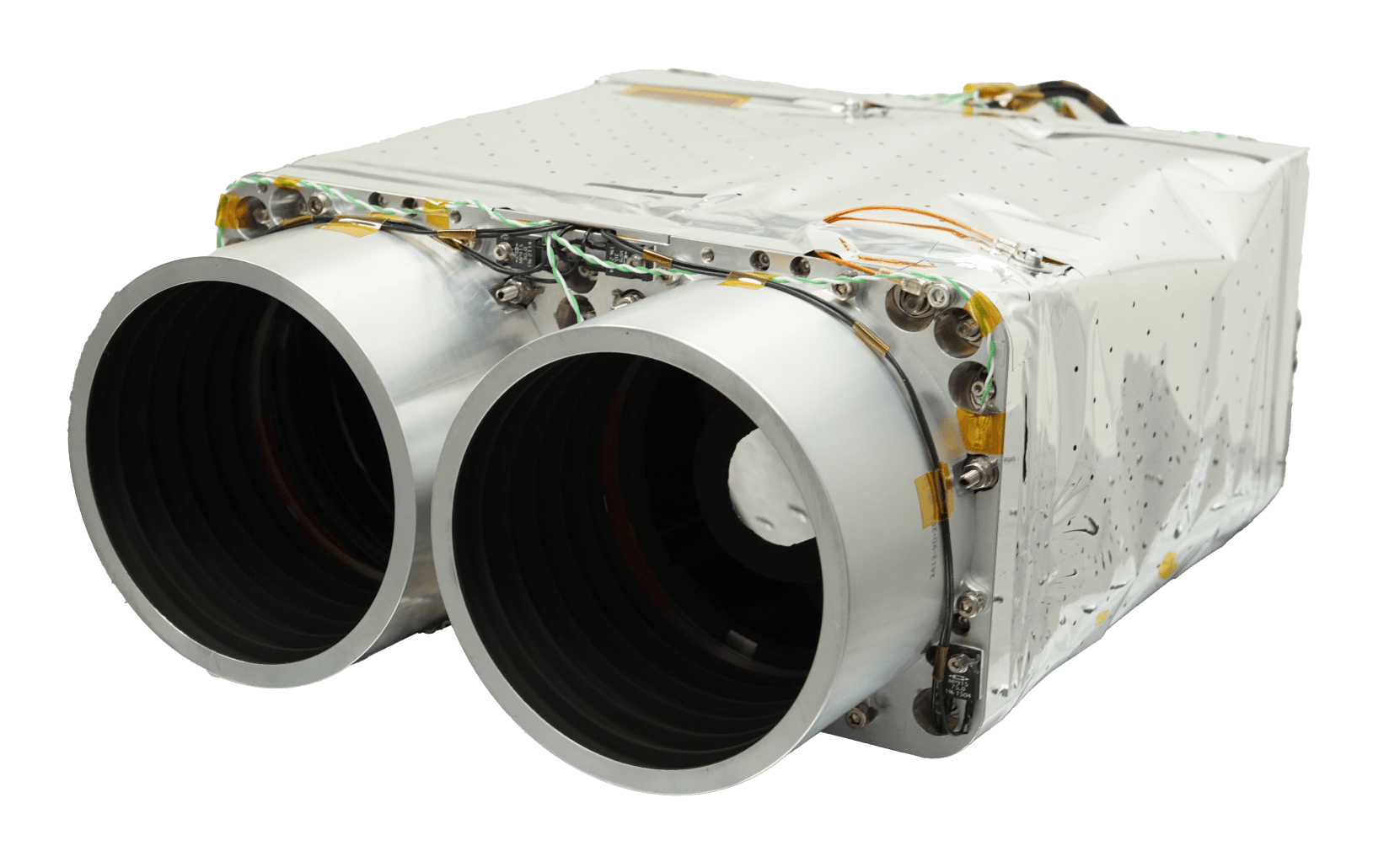

iSIM-90

The iSIM-90 instrument is the lightest and most compact optical payload of the iSIM family, able to provide imagery in the VNIR (Visible and Near-Infrared) and/or SWIR (Short-Wave Infrared) spectral ranges, designed to fit 12U/16U CubeSat platforms, while keeping a high performance-to-mass ratio.
Based on SATLANTIS’ proprietary and flight-proven technology iSIM.

iSIM 90 – Main Features

MASS: < 4 kg – targeted for 12/16U CubeSats
SWATH (at 500 km)
PAN & VNIR: 13 – 23,5 km
SWIR: 8,2 km
IMAGING GSD (at 500 km)
PAN & VNIR: 2 m
SWIR: 5 m
HERITAGE: validated in Space in Q4 2021
